A durable, all-weather road safety barrier that is crash- and wind tunnel-tested, and easy to install, the Manta Barrier is:
- Easy to install
- Versatile
- Durable
- Sustainable
- Safe
For more information, contact our Sales Team and they will be happy to help and advise:
T: 01228 675 764
Or complete the enquiry form below.
Manta Barrier
The flexible design means this barrier is a durable construction that enables these barriers to be repositioned and reused as many times as your project requires.
- Cost-effective solution
- Up to 216m per load when barriers are double stacked
- Tested as free-standing with no ground drilling needed
- Class A’ Wind Tunnel Test Certification
- Crash tested W7 of BS EN 1317:2010
- Quick and easy to assemble, install and reposition
- Lightweight & stackable for easy transportation and storage
- Compatible with top-section safety fencing for added safety and perimeter protection
- Available in 2 high visibility colours
Manta barriers are made from long-lasting, recyclable galvanised steel, which is powder-coated to provide high visibility and the capability to withstand all weather conditions. Each unit is connected to another, using a removable steel pin, to form a continuous barrier system.
- Choice of red or white
- Height: 420mm
- Depth: 500mm
- Width: 1,500mm
- Weight: 45kg
Pedestrian Fence – Full 3m
In addition to its stand alone benefits, the Manta Barrier can accommodate one of the lightest 3m anti-climb fence panels on the market, allowing for greater ease when manually handling.
The add-on panel massively increases the overall height to a lofty 2m.
This quick and easy to install extension provides the reassurance of knowing the chances of a perimeter breach are dramatically reduced.
Pedestrian Fence – Short 1.5m
The Manta Barrier Pedestrian fence is very lightweight, weighing only 5kg.
Despite its light weight, the pedestrian fence extension increases the overall height of the barrier system to a substantial 1m.
This quick and easy to install extension provides the additional security often needed to protect vehicle drivers, workforce and pedestrians.
By using the pedestrian fence extension you have the reassurance of knowing the extra height achieved will reduce the risk of a
passer-by perimeter breach.
Fence & Gate Options
The Manta Barrier is versatile not only in terms of length and height, but also with the additional solutions which it can provide, including Pedestrian Gates and Fences (see picture) and Vehicle Gates and Fences.
End Stop
A run of Manta Barriers can be neatly finished off by using our specially-designed end section unit. The finishing section is available for both male and female connections and ensures there are no unwanted edges that could potentially be hazardous.
The end section maintains the height of the standard unit and has the advantage of also being compatible with all of the available fencing add-ons.
Other benefits include the end section’s ability to act as a cushion absorbing impact and in turn protecting connection parts should the Manta barrier be impacted.
In addition the end section allows for a nice tidy finish to the end of a Manta Barrier run, it also has benefits due to its octagonal shape which minimises movement when in transit if stacked on its side, compared to round competitor units which are prone to excessive movement when in transit.
Wind Resistance
The Manta barrier is manufactured from hot dipped galvanised steel which is highly resistant to corrosion and complies with British Standards (BS EN ISO 14361 (2009)).
The barriers have been rigorously tested in leading wind tunnel and crash test facilities which demonstrates their suitability for highly congested or city-centre locations.
- Crash-tested to T2 W7 levels without reinforcement
- Quick and easy to assemble, install and reposition
- ‘Class A’ Wind Tunnel Test Certification
- Connected units form a continuous barrier
- Stackable for easy transportation and storage

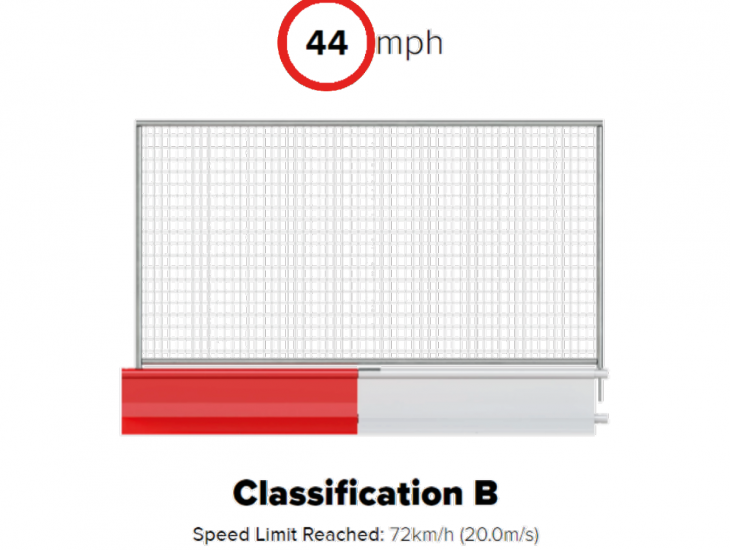

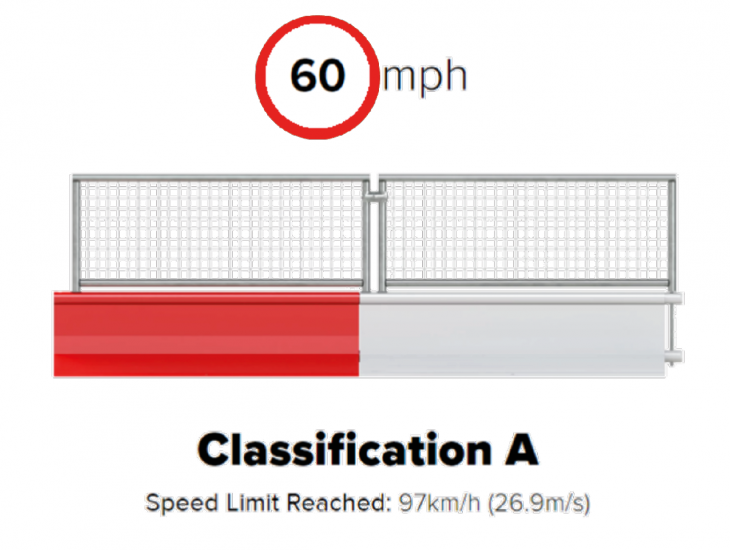

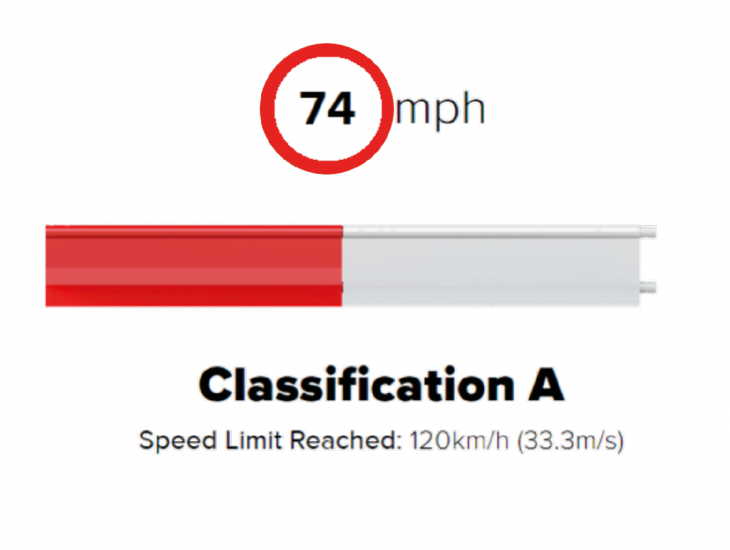

The Manta Barrier has been meticulously tested within an internationally-renowned wind tunnel testing facility, during which the barrier system achieved two classification A passes and one classification B pass.
Three arrangements of the Manta barrier system have been tested, these include two adjoined Manta barriers without any add-ons, two adjoined Manta barriers with the lightweight pedestrian fence add-on, and two adjoined Manta barriers with the anti-climb mesh fence add-on. Each arrangement of the system achieved a high level of wind resistance, with the exact resistance figures detailed above the diagrams to the right.
